Extra large aperture, starlight level imaging lens Multi-coated, higher transmittance and less stray light HRI and LD glass, high resolution imaging optics Glass+metal design, broad range of operating temperature Used for 1 megapixel camera gun

related Product

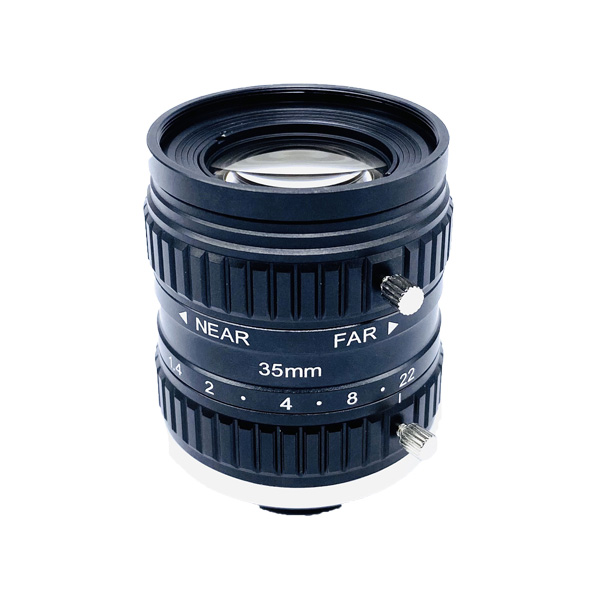

Model BBH03011-5M3514
Sensor Type 1″
Resolution 5M
Focal Length 35mm
F/NO F1.4~22
Optical FOV (D*H*V) 1″ D25.7°/H20.7°/V15.6°
2/3″ D17.8°/H14.3°/V10.7°
TV Distortion 1″ -0.27%  y=8mm
2/3″ -0.06%  y=5.5mm
Focus Range 1.0m ~ ∞
Mechanical BFL(E) 17.526㎜
Control Method Focus Manual
Iris Manual
Mount C
Filter Size M39xP0.5
Temperature -10℃~+50℃
