BBH03017-8M2516

Description:

Extra large aperture, starlight level imaging lens
Multi-coated, higher transmittance and less stray light
HRI and LD glass, high resolution imaging optics
Glass+metal design, broad range of operating temperature
Used for 1 megapixel camera gun

related Product

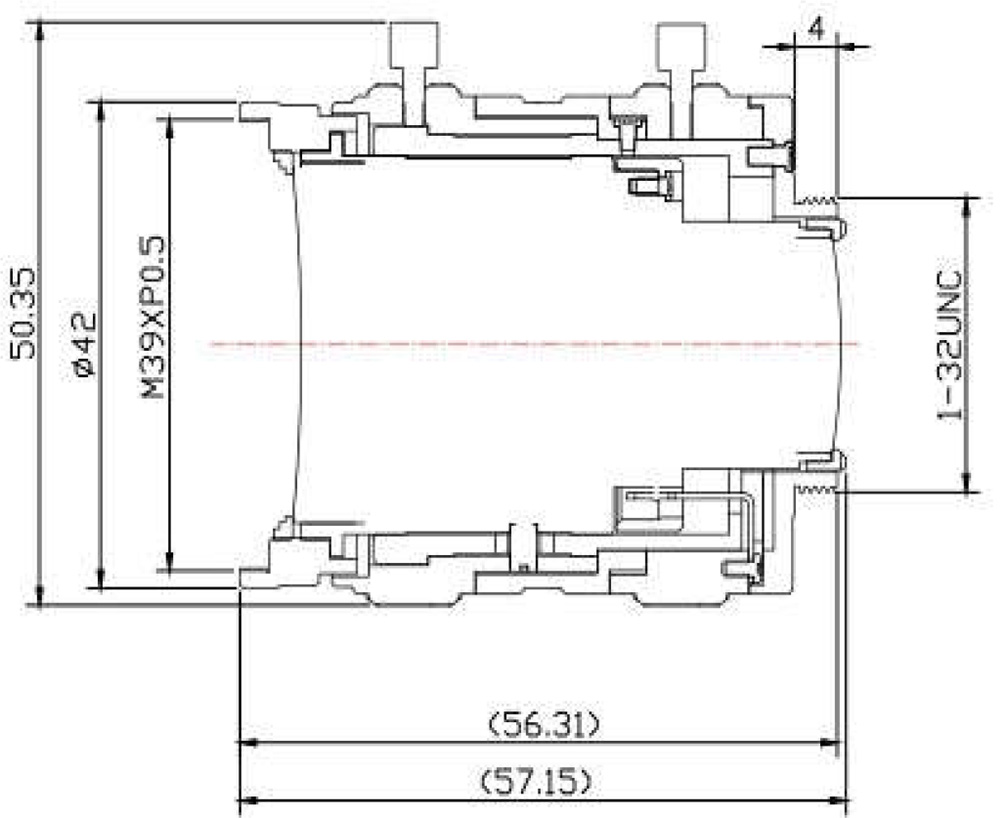

Dimension:

Specification:
Model BBH03017-8M2516
Sensor Type 1″
Resolution 8M
Focal Length 25mm
F/NO F1.6~22
Optical FOV (D*H*V) 1″ D36.2°/H29°/V21.8°
2/3″ D25.0°/H20.0°/ V15.0°
TV Distortion 1″ -2.060%  y=8mm
2/3″ -0.98%  y=5.5mm
Focus Range 1.0m ~ ∞
Mechanical BFL(E) 17.526㎜
Control Method Focus Manual
Iris Manual
Mount C
Filter Size M39xP0.5
Temperature -10℃~+50℃
