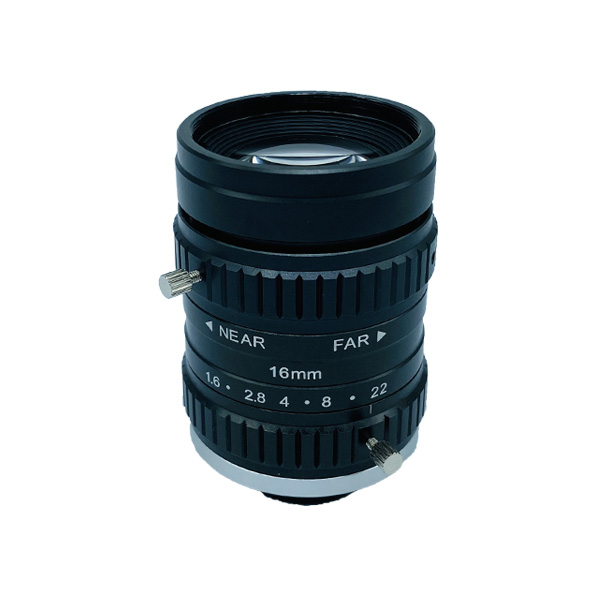

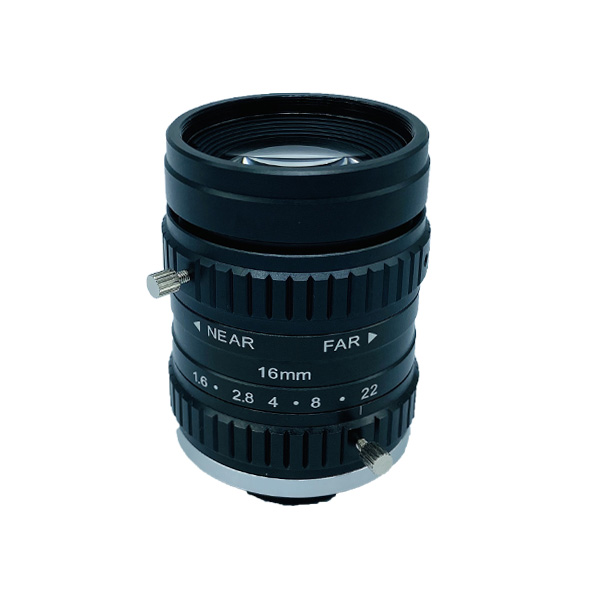

BBH03013-5M1616

Description:

Extra large aperture, starlight level imaging lens
Multi-coated, higher transmittance and less stray light
HRI and LD glass, high resolution imaging optics
Glass+metal design, broad range of operating temperature
Used for 1 megapixel camera gun

related Product

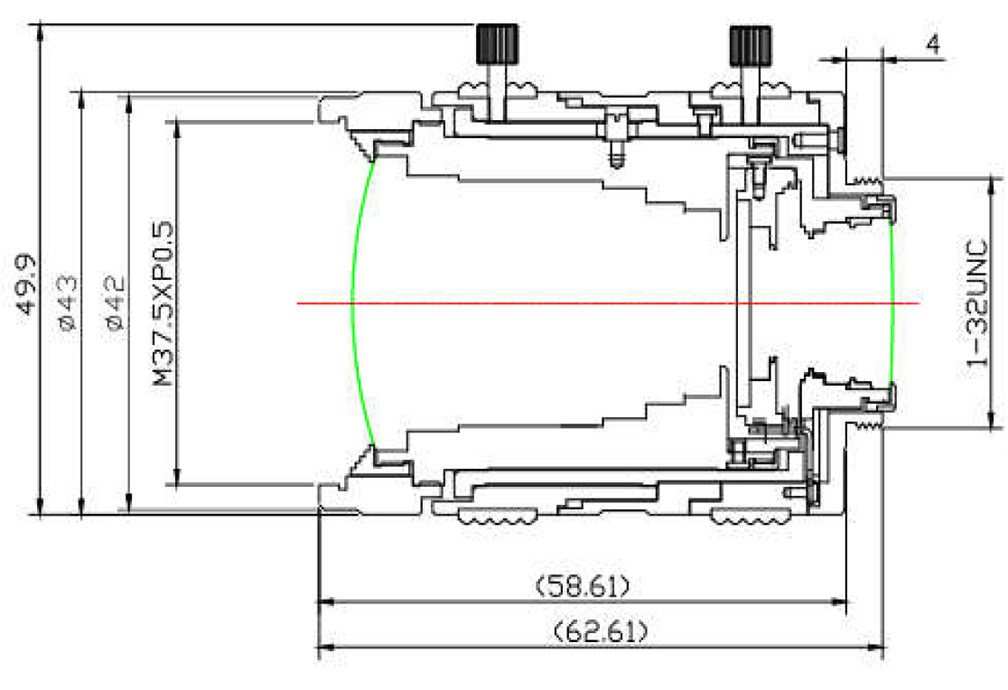

Dimension:

Specification:
Model BBH03013-5M1616
Sensor Type 1″
Resolution 5M
Focal Length 16mm
F/NO F1.6~22
Optical FOV (D*H*V) 1″ D55°/ H45°/ V34°
2/3″ D39°/H31°/ V23.5°
TV Distortion 1″ -3.90%  y=8mm
2/3″ -1.90%  y=5.5mm
Focus Range 1.0m ~ ∞
Mechanical BFL(E) 17.526㎜
Control Method Focus Manual
Iris Manual
Mount C
Filter Size M37.5xP0.5
Temperature -10℃~+50℃
